ALPHA-HCA Fully Automatic Pallet Wrapper

Fully automatic turntable pallet wrapper with 300% power pre-stretch, PLC/HMI control, CE certified, and optional in-feed/out-feed conveyors for up to ~28 pallets/hour. Installation, commissioning & training included.

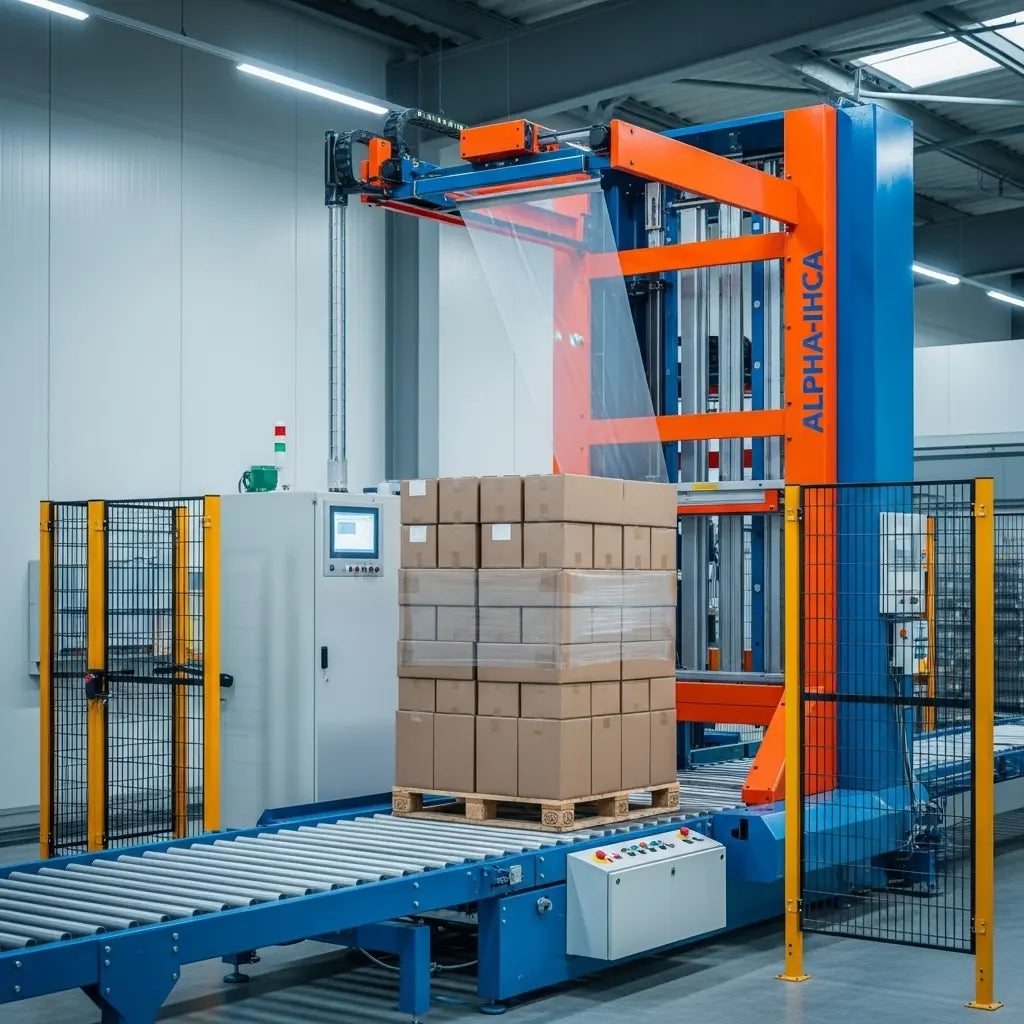

The ALPHA-HCA is a fully automated turntable pallet wrapper with integrated power roller conveyor and 300% power pre-stretch, engineered for high throughput and consistent load security. PLC-driven (Mitsubishi FX5G-80MT) with a 7” HMI, Delta inverters, and industrial-grade sensors/pneumatics. CE certified.

Key features
• 300% Power Pre-stretch (1 m → 3 m) for film savings
• Turntable Ø 2100 mm, 3–15 RPM, 2000 kg max load
• Auto clamp, cut & wiper (with blower assist)
• Two programs; total & daily non-resettable counters
• Wrapping height up to 2700 mm; ~28 pallets/hour (standard)
• 3-phase 415 V, 50 Hz; ~3 kW; 6.5 bar compressed air

What’s included
• Installation, commissioning & operator/maintenance training
• Freight, customs clearance & delivery to site (AU)
• Final layout positioning and integration support

Options
• Light curtains (H 1000 mm) at entry/exit
• Safety door interlock switches (Highly Taiwan)
• Perimeter fence (2 m) or integration with existing fencing

Performance & specs
• PLC / HMI: Mitsubishi FX5G-80MT / Delta 7” colour
• Inverters: Delta (turntable, carriage, conveyor, film pull)
• Sensors: Omron / SICK / P+F
• Turntable: Ø 2100 mm, power-roller driven, soft start/stop
• Max load: 2000 kg
• Film: 500 mm × 76 mm core; roll ~13.8 kg (L 1500 m)
• Wrapping height: up to 2700 mm
• Throughput: ~28 pallets/hr (≈23 with top press)
• Air: 6.5 bar, ~40 L/pallet (~20 L/min)
• Power: 3-phase 415 V, 50 Hz, ~3 kW
• Certification: CE
